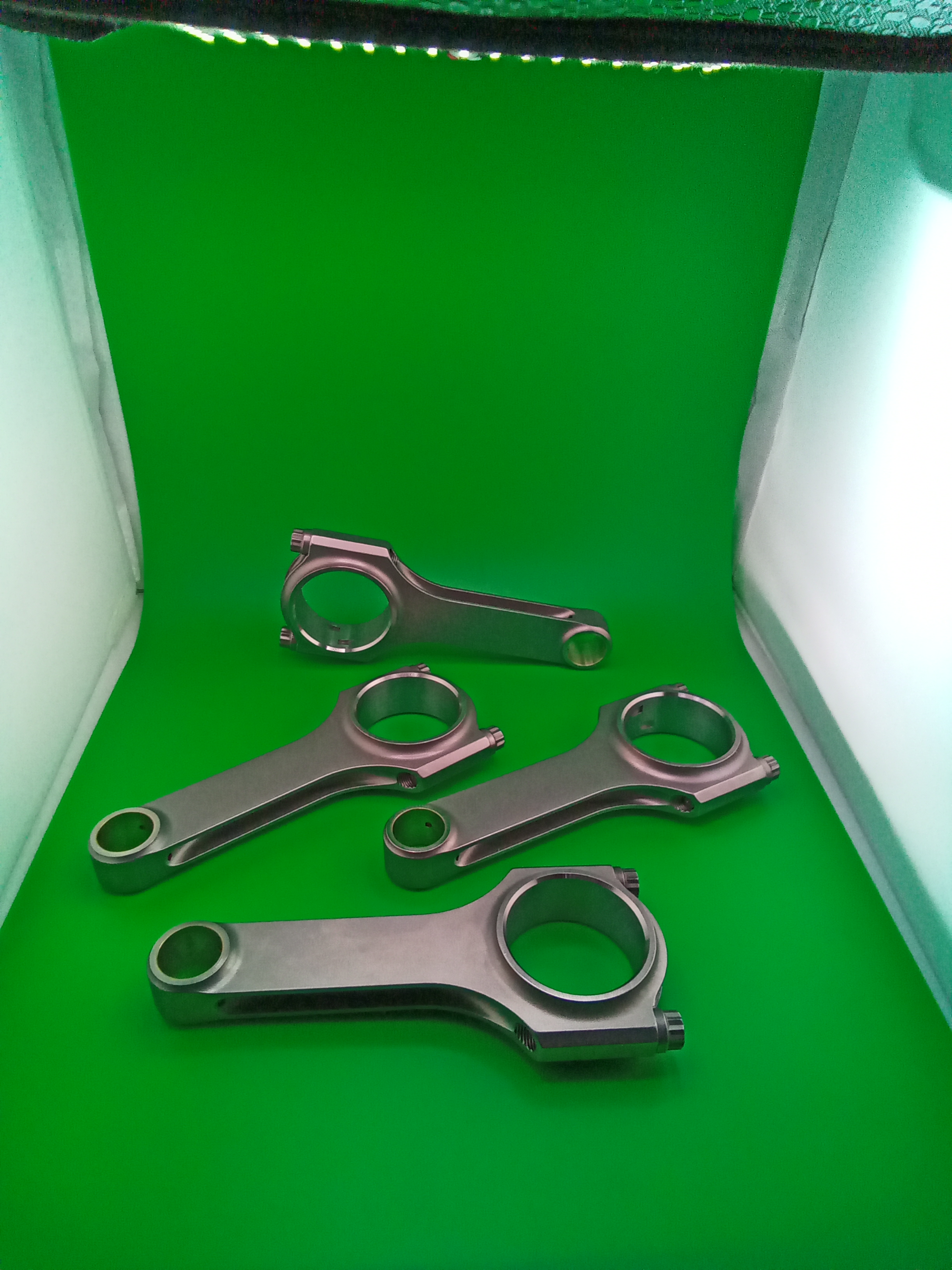

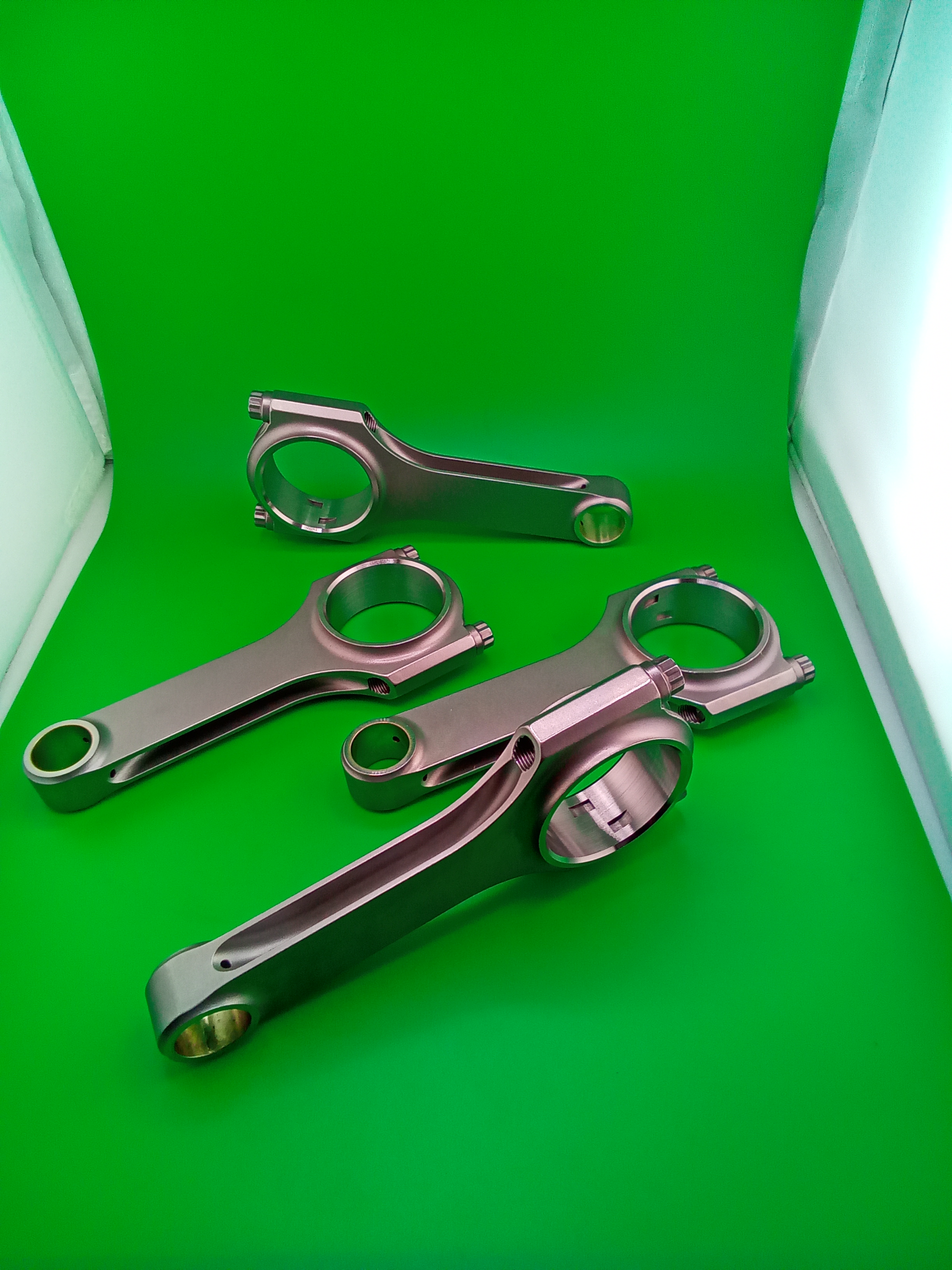

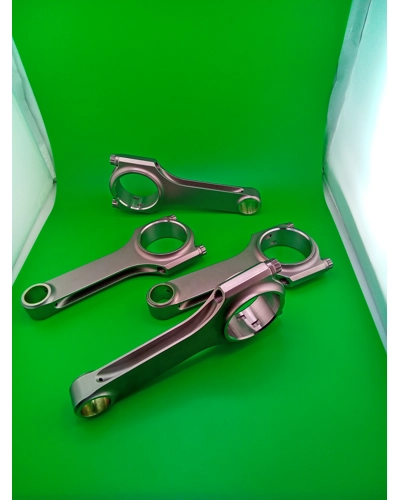

Hurley EN24V Forged Steel Connecting Rods

Toyota 3SGE BEAMS SXE10

Set of 4 Connecting Rods with Genuine ARP Bolts

Designed for high-performance and competition engine applications, these Hurley EN24V Forged Steel Connecting Rods have been manufactured exclusively to our own specifications, material requirements and tolerances to deliver exceptional strength, reliability and performance.

Supplied as a matched set of four rods complete with genuine ARP rod bolts, these connecting rods are suitable for demanding naturally aspirated, forced induction and motorsport engine builds.

Engineered for High RPM Performance

Manufactured from premium EN24V forged steel, these rods offer an outstanding combination of strength and reduced weight, making them capable of supporting engine speeds of up to 10,000 RPM when used in appropriately specified engine builds.

Designed to work with both the standard Toyota 3SGE BEAMS Altezza piston and aftermarket forged piston combinations.

Specifications

• Centre-to-centre length: 138mm
• Small end diameter: 22mm
• Small end width: 21.98mm
• Big end diameter: 51mm
• Big end width: 26.75mm
• Material: EN24V Forged Steel
• Genuine ARP rod bolts included
• Supplied as a matched set of 4

Super-Finished for Maximum Reliability

Each connecting rod undergoes a super-finishing process to improve surface quality and eliminate sharp edges and burrs. This meticulous finishing process helps reduce stress concentrations and provides a level of preparation expected in professional motorsport applications.

Unlike many off-the-shelf rods currently available, every set is carefully inspected and hand-finished by us to the same standards we apply when building our own race engines.

Features

• Premium EN24V forged steel construction
• Genuine ARP high-performance rod bolts
• Lightweight design for high RPM capability
• Suitable for up to 10,000 RPM applications
• Compatible with standard BEAMS pistons and forged piston sets
• Super-finished and hand-prepared
• Precision manufactured to Hurley specifications
• Ideal for naturally aspirated, turbocharged and competition engines

Why Choose Hurley?

At Hurley, we don't simply sell engine components, we use them ourselves. Every product is chosen, tested and prepared with the same attention to detail that goes into our own race engine builds.

✔ Premium EN24V forged steel construction
✔ Genuine ARP rod bolts included
✔ Super-finished and hand-prepared
✔ Suitable for stock and forged piston applications
✔ Proven high-RPM capability
✔ In stock for immediate dispatch
